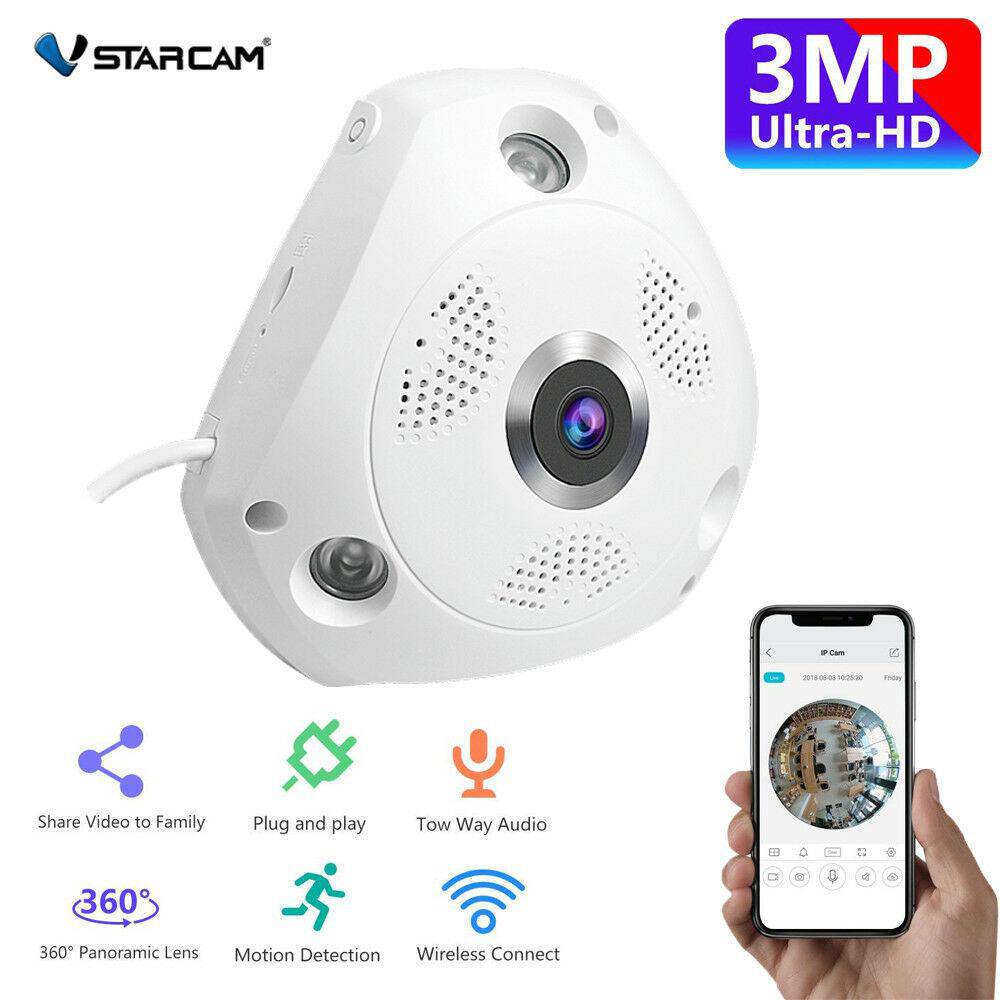

VStarcam C61S Built-in WiFi FHD 1536P 360 Panoramic Monitoring Fisheye Camera

System

Operation system

Embedded Linux OS

Online visitor

Support 4 visitors at the same time

Image Capture

Image sensor

1/2.4 inch 1536p Progressive Scan CMOS

Minimum Illumination

0.3~0.5Lux(color mode).0Lux(B&W mode)

Lens

2.3mm@F2.4

View Angle

180

Nightvision

Dual Filter.IR-Cut 3pcs 850nm?? IR LED???

IR irradiation distance:5~10m

Video

Encode format

H.264 main profile@levels:4.0/Motion-JPEG

Three Stream

Main Stream:1536p(1536X1536)@15fps

Bit Rate

128 4096kbps

Maximum frame rate

15fps

Image adjustment

Contrast Brightness?€?Saturation?€?Hue

Audio

Input

Built-in -38dB Microphone

Output

Built-in 81W speaker

Sampling frequency

8KHz

Sampling Bit wide

16bit

Encode format/Bit rate

ADPCM/32kbps

Network

Ethernet

10Base-T / 100Base-TX. RJ45 connector

Protocols

TCP/IP.HTTP.TCP.UDP.DHCP.DNS.NTP.RTSP.P2P etc

Wireless LAN

IEEE802.11b/g/n

Wireless LAN Frequency

2.4~ 2.4835GHz

Wireless LAN security

64/128-bit WEP/WPA-PSK/WPA2-PSK??data encryption

Memory

Socket

TF Push-push socket.Maximum support??128GB

Alarm

Alarm Trigger

Motion detection

Physical

Environmental

Rated voltage

DC12V 5%

Power consumption

Typical:6.24W(IR LED on)

Operating condition

Temperature:-10 50???.humidity:???90%

Weight

Gross TBDg(Note: in kind prevail)

Package size

196X183X110mm (L??W??H)
